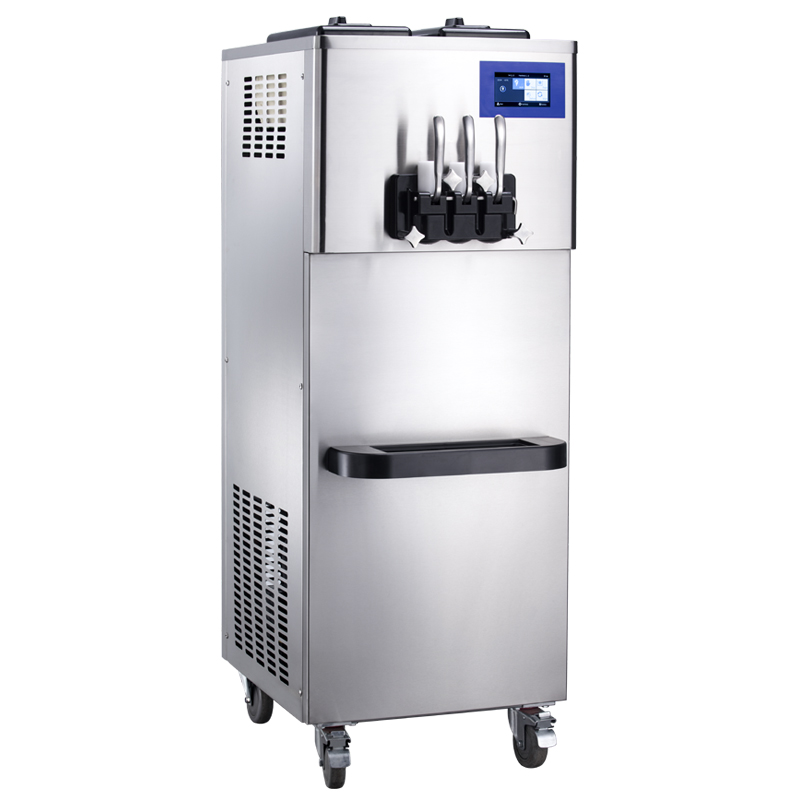

BQ322-S
Jinlisheng
Product Specification：
Features：Twin Twist Flavors, Ram Pump, Embraco Aspera Compressor, Separate Hopper Refrigeration / Standby Mode, Hopper Agitator, Mix Low Light Alerts, Heat Treatment.
1, Model No.: BQ322-S ( Memo:S: With ram pump. )
2, Size: 530mm×730mm×1460mm / 21 in×29 in×57 in
3, Rated Power: 1.9KW
4, Refrigerant: R404A
5，Air Circulation Requirement：Both Sides：≧ 153mm ( 6 " )
6，Type：Floor-standing ( Front Casters Locking )
7，Rainbow Syrup：Optional
8，Refrigeration Capacity（75 g/serving ）：20 ( L / H ) / 200 ( Serving / H )
9，Cylinder Capacity ( L ) ：1.7 × 2
10，Mix Hopper Capacity ( L ) ：10.0 × 2
11，G.W.：170 ( KG ) / 375 ( lb )
12，N.W.：135 ( KG ) / 298 ( lb )
13, 3 Optional Items:
●Upgraded Freezing Cylinder Agitator,
●Syrup Rail (Integrated),
●Cones Holder.
| Soft Serve Freezer | |
| Output Product Name： | Soft serve such as ice cream, sorbet, frozen yogurt and frozen custard... |
| Raw Material： | Ice Cream Power/Paste, Milk, Yogurt, Formula and Water |
| Electric(1Phase)： | 220V （50Hz / 60Hz） 110V （60Hz） |
| Electrical Control: | Thermal & Overcurrent & High / low Voltage Protection. |
| Climate Type： | SN-ST |
| Cooling System： | Air Cooling |
| Air Circulation Requirement： | Both Sides：≧ 153mm (6") |
| Puffing Technology： | Danfoss Expansion Pump |
| Foaming： | Overall |
| Certification： | CE, ROHS |
| Warranty： | 1 Year Parts Warranty |
| Refrigerant： | R404A ( Embraco Aspera / Tecumseh compressor ) R410A ，R22 ( Chinese named brand compressor ) |
| Intelligent Control & Auto-diagnose： | ①VFD Display Control System ②Producing Finish Alert ③One-click Cleaning ④Draw Counter ⑤Mix Low Light Alerts |
| Mix Feeding： | Gravity (Pumps are Optional) |
